Engineering an Immersive, Headless Data Terminal for the Modern Rock Era: A Technical & Business Case Study

Executive Summary & Vision: Bypassing the Algorithm

In the modern music ecosystem, independent artists face an existential platform crisis. Streaming monopolies distribute fractions of a penny per stream, while social media networks gatekeep direct fan access behind algorithmic paywalls and ad spend. The traditional band website—a static landing page with an embedded Spotify widget and some merchandise links—fails to solve either problem.

The Second Messenger is an immersive digital ecosystem, direct-to-consumer monetization platform, and custom headless CMS tailored specifically for an independent modern rock campaign. Designed around a striking sci-fi tactical data terminal and heads-up display (HUD) aesthetic, the application bypasses third-party middlemen to drive direct monetization through premium asset vaults, gamified memberships, and custom-tailored listening environments.

By treating an artist project like an early-stage startup, this platform pairs cutting-edge web engineering (Next.js 16 App Router, React 19, Payload CMS v3, Cloudflare R2, WebAssembly) with sharp product strategy (Role-Based Access Control, serverless edge cost optimization, and automated asset pipelining). The result demonstrates how custom software can restore operational autonomy and financial sustainability to independent creative operations.

🏗️ The Architectural Blueprint: Unified, Monolithic Headless Power

Rather than splitting the project into a fragmented maze of separate codebases (e.g., WordPress for the blog, Shopify for a storefront, Patreon for memberships, and a custom React frontend), the system leverages a unified monolith architecture powered by Next.js 16 and Payload CMS v3 running on a shared domain.

                +---------------------------------------+
                |         Unified Next.js App           |
                +---------------------------------------+
                                    |
                 +------------------+------------------+
                 |                                     |
    v------------v------------v           v------------v------------v
    |   /app/(frontend)       |           |   /app/(payload)        |
    |   Public Edge-Rendered  |           |   Private Admin Engine  |
    |   & Persistent HUD UI   |           |   & Headless Data Layer |
    v-------------------------v           v-------------------------v
                 |                                     |
                 +------------------+------------------+
                                    |
                 v------------------v------------------v
                 |      Drizzle ORM / PostgreSQL       |
                 +-------------------------------------+

The Tech Stack Matrix

Framework: Next.js 16 (App Router) + React 19.
Data Management: Payload CMS v3 smoothly integrated as a headless engine directly within Next.js subroutes (/app/(payload)).
Database: PostgreSQL deployed via @vercel/postgres and orchestrated with clean data schemas.
File Infrastructure: Cloudflare R2 object storage partitioned into public asset distribution (media) and private, encrypted digital IP delivery (gated-content).
UX & Styling: Tailwind CSS v4, specialized adaptations of shadcn/ui, Framer Motion, and lightweight environment injection via three.js.

🧠 Deep Dive 1: Cost Optimization & Gamified Role-Based Access Control (RBAC)

The Business Strategy

Fans assume explicit ranks within the thematic universe ("The Crew"): Ensign, Lieutenant, Commander, and Captain. Higher ranks gain unlockable clearances to exclusive premium IP: raw multi-track audio stems, high-fidelity unmastered WAV mixes, daily recording logs, and multi-format master archives.

The Engineering Challenge: Eliminating Compute Proxy Bloat

Initially, authenticated vault requests were proxied through a standard serverless api endpoint (/api/gated-content/file/...), which pulled the object from Cloudflare R2 and streamed it back through a Vercel function to enforce security rules.

While functional, a post-launch metrics review revealed a massive architectural bottleneck: large multi-megabyte audio archives and stems were consuming ~98.9% of the Vercel project's monthly Fast Origin Transfer (FOT) quota, risking instant billing overages or project suspension on standard hobby tiers.

The Solution: Secure Presigned S3 Token Redirects

The architecture was refactored into a lightweight, high-performance Redirect Handshake Pipeline. Instead of streaming file data through serverless compute, the serverless handler performs instantaneous, low-overhead operations:

Intercepts incoming stream requests via session cookies.
Evaluates clearance permissions via custom collection hooks (gatedContentReadAccess) in Payload CMS.
Generates an ephemeral, short-lived Secure Signed Download URL directly from Cloudflare R2 on verification.
Responds with an instantaneous HTTP 302 Redirect. The client browser streams raw file data entirely from Cloudflare's global edge network, stripping the compute billing overhead away from the host server.

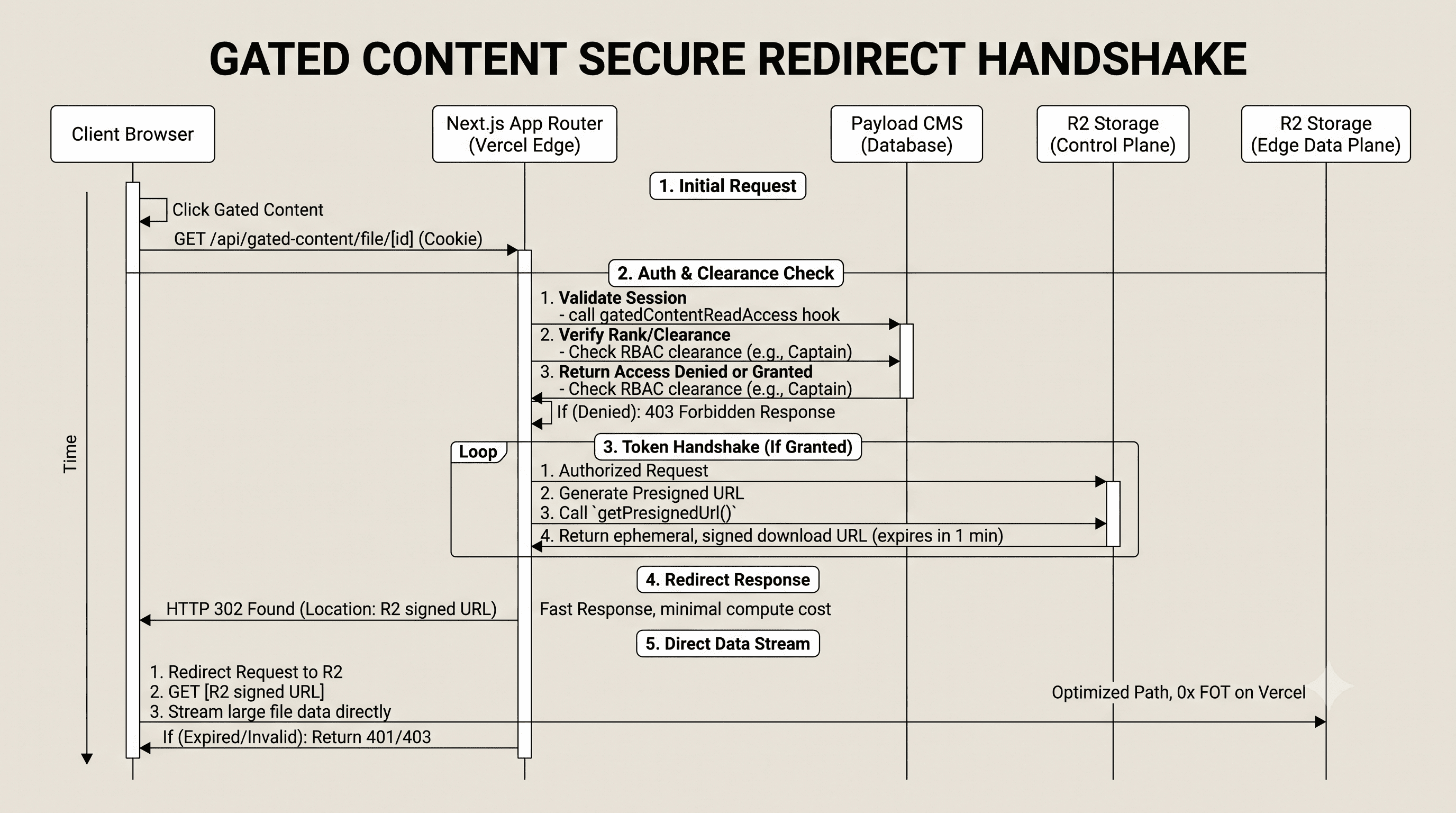

Client Browser » Next.js Serverless Verification » Ephemeral R2 URL Generation » 302 Handshake » Direct R2 Data Stream.

// Sample implementation snippet showing the optimization approach
export const gatedContentReadAccess = async ({ req: { user }, id }) => {
  if (!user) return false; // Fail fast for unauthenticated bots

  // High-performance mapping of 'The Crew' tier clearances
  const userRank = user.crewRank;
  const requiredClearance = await fetchRequiredClearance(id);

  return checkRankClearance(userRank, requiredClearance);
};

🎵 Deep Dive 2: Designing a Seamless, Persistent Global Audio Engine

The UX Problem

Standard web navigation breaks traditional audio implementations. When a user changes routes from a blog post to a profile customization page, the browser re-evaluates the component tree, causing audio playback to stutter, reset, or drop entirely. This ruins user immersion.

The Component Architecture Solution

To replicate the fluent, seamless UX of high-end native applications like Spotify or Apple Music within a web browser, a stateful global audio orchestration layer was built:

Isolated Front-End Routing: The public layer utilizes a dedicated Next.js route group layout (app/(frontend)/layout.tsx) that acts as a persistent root wrapper.
React Context Synchronization: A global state machine (PlayerContext.tsx) manages multi-track playback queue states, track indices, buffer loading milestones, and localized playback states across the entire application lifecycle.
Decoupled Rendering Execution: When route transformations take place under app/(frontend)/[slug], only the inner visual subtree morphs. The persistent player wrapper—living at the top-level layout layout chain—remains entirely un-rendered and isolated from global layout changes, keeping streaming data pipelines moving flawlessly.

🛠️ Deep Dive 3: Asynchronous Metadata Injectors via WebAssembly Workers

The Operational Challenge

To keep fans engaged, the artist drops raw daily mix versions and instrumentals directly from the tracking desk. However, raw audio files exported straight from Digital Audio Workstations (DAWs) lack embedded cover art, standardized cataloging numbers, ISRC tags, and structured metadata. Expecting an artist to run desktop tagging utilities for hundreds of raw audio assets creates severe operational friction.

The Automations Blueprint: In-Place Binary Tag Modification

To resolve this, an automated background serverless worker engine (syncAudioTagsTask) was designed. When an audio file is uploaded to the dashboard, a background workflow executes via database collection lifecycle hooks:

Asset Retrieval: The system grabs raw binary files out of temporary storage buckets.
Asset Rescaling Engine: It fetches canonical cover art assets, feeding the data array buffer through a compressed sharp optimization worker pipeline to render a standardized 1400x1400px JPEG thumbnail.
WASM In-Place Injection: The engine initializes a customized compilation of TagLib compiled to WebAssembly (taglib-wasm). This mutates ID3v2.3 tagging headers directly inside serverless memory arrays—burning tracks with proper song names, track sequences, artists, and artwork boundaries without writing temp data to local storage disks.
In-Place Bucket Overwrite: The updated buffer streams right back up into Cloudflare R2, guaranteeing that whenever a fan downloads a file, it drops into their native offline media player with metadata intact.

// Architectural extract from lib/audio-tags/syncSongAudioTags.ts
export async function syncSongAudioTags(payload: Payload, songId: number): Promise<SyncResult> {
  const song = await payload.findByID({ collection: 'songs', id: songId, depth: 2 });
  const masters = taggableMasterMedia(song);

  // Generate cryptographic hashes of tag specifications to skip redundant updates
  const spec = mapSongToTagSpec({ song, coverArt: optimizedCoverArtPayload });
  const hash = hashTagSpec(spec, `masters:${masterKey}`);

  if (lastHash === hash) return { status: 'skipped', reason: 'Metadata is already synchronized.' };

  for (const master of masters) {
    const originalBuffer = await fetchUploadBytes(master);
    const mutatedBuffer = await writeTagsToBuffer(originalBuffer, spec); // WebAssembly Tagging Bound

    await payload.update({
      collection: master.collection,
      id: master.id,
      file: { data: Buffer.from(mutatedBuffer), mimetype: 'audio/mpeg' },
      overwriteExistingFiles: true
    });
  }
  return { status: 'synced', hash };
}

🎨 Art Direction: The Brutalist Cyber-Terminal Design System

Moving far away from standard template kits, the visual canvas functions under a unified design brief: The Tactical Command Deck HUD.

Geometries: Hard, unyielding layout rules. Rounding utility classes are entirely restricted (rounded-none global policy), forcing components to align to sharp 1px borders and rigid layout grids.
The Atmospheric Canvas: Deep, canvas-style blacks (bg-background) contrasted with glowing interactive accents using precise drop-shadow structures that replicate modern CRT vector luminescence.
Typographic Gradients: Clean, monospaced system font arrays (simulating low-level system logs) provide high structural readability alongside bold, tightly tracking header configurations.
Dynamic Data Decryption: Text modules utilize custom <DecryptedText /> elements. On scroll triggers or interaction boundaries, text modules programmatically generate randomized string cycles before settling into the decoded textual output, simulating active real-time data feeds.

📈 Business Outcomes & Technical Product Takeaways

Building this application provided clear insights into what it takes to launch an independent direct-to-consumer software platform:

Owning the Funnel Works: By shifting exclusive experiences and high-value digital content away from rent-seeking platforms to a self-managed ecosystem, independent operations gain true economic freedom.
Architectural Discipline Saves Money: Catching multi-gigabyte bandwidth spikes early and refactoring them from serverless proxy pipelines into secure edge redirects shows the direct financial impact of smart infrastructure choices.
Automate Creative Workflows: Building custom administrative pipelines (like background WASM audio taggers) allows platform managers to focus on high-level content and growth strategy rather than manual database entry.

This project highlights how modern web developer skills, creative design systems, and practical database engineering can come together to solve real-world distribution problems.

The Second Messenger Web Platform
